BOP Rentals

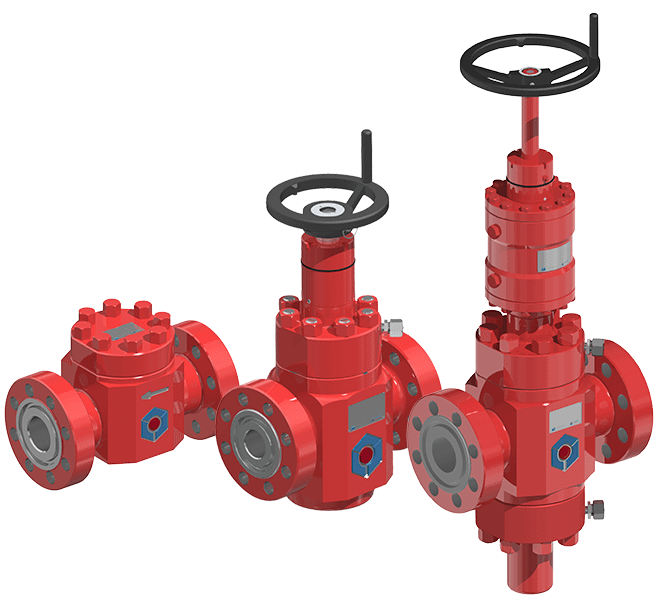

Drilling Valves – Gate, Ball, Plug & Check

Valves used are hydraulically operated, fail-safe closed.

Hydraulic pressure is required to open the valve only. Closing the valve is accomplished by spring force within the valve operator and by some means of assist from line pressure. An inherent problem of all hydraulic operated fail-safe valves is the reaction force caused by hydrostatic head always present on the opening pressure side of the hydraulic piston in the valve operator.

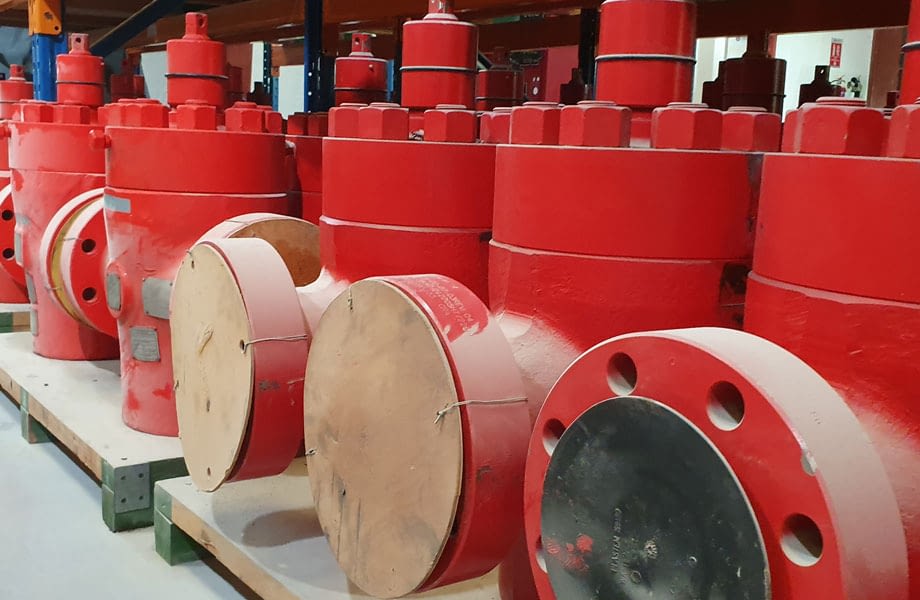

Manual Gate

Bore SizeWorking Pressure
2"3M, 5M, 10M, & 15M
3"3M, 5M, 10M, & 15M
4"3M, 5M, 10M, & 15M
5-1/8 to 7-1/16"5M

Hydraulic Actuated Gate

Bore SizeWorking Pressure
2"3M, 5M, 10M, & 15M
3"3M, 5M, 10M, & 15M
4"3M, 5M, 10M, & 15M
5-1/8 to 7-1/16"5M

Ball Valves (Diverter)

Bore SizePressure RatingsModel
8"5000 psiFlange class 1500
12"2000 psiFlange class 600
12"3000 psiFlange class 900

Check Valves

Bore SizeWorking Pressure
2"3M, 5M, 10M, & 15M
3"3M, 5M, 10M, & 15M
4"3M, 5M, 10M, & 15M

Plug Valves

Bore SizeWorking Pressure
2-1/16"3M, 5M, 10M, & 15M Flanged
10M & 15M Flanged available with Hydraulic Motor
