Diverter Packages

A system used to control well blowouts encountered at relatively shallow depths and to protect floating rigs during blowouts by directing the flow away from the rig.

The diverters provide an effective means of rerouting the flow of shallow, low-pressure gas. The diverters can be used either as a diverter or a Annular BOP. Very few moving parts on Annular/Diverter mean few surfaces are subjected to wear.

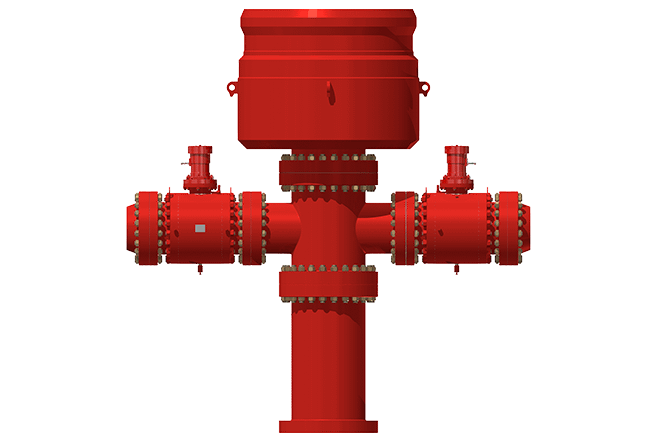

Diverter Package - 29-1/2" 500 psi Systems

Consisting of:
1 x 29-1/2" 500 psi Annular BOP, 29-1/2" 500 psi WP R-95 Flange down, 29-1/2" 500 psi R-95 Studded Top
1 x 29-1/2" 500 psi Diverter Spool, 29-1/2" 500 psi Flanged Top & Bottom, c/w 2 off 13-5/8 2M R-57 Flanged Side Outlets
1 x 29-1/2" 500 psi R-95 Butt Weld Flange for Conductor top
2 x 12" CI 600 Diverter Ball Valves, Hyd Actuated, Flanged 13-5/8" 2M R-57
2 x 13-5/8" 2000 psi R-57 Butt Weld Flanges for Diverter Valves to Flare Lines connection
Flare Lines, 12" by 15' sections c/w Flange or Hammer Lug connections to customer specifications.
28 Studs c/w 1 Nut 1-3/4" 8UN x 9-1/8" Long, Top of Annular
56 Studs c/w 2 Nuts 1-3/4" 8UN x 13-1/2" Long for the 29-1/2" 500 psi R-95 Flanges & 29-1/2" Butt Weld Flange
80 Studs c/w 2 Nuts 1-1/4" 8UN x 9-1/2" Long for the two 12" Diverter Valves & Butt Weld Flanges
3 each R-95 Ring Gaskets (for 29-1/2" Profile)
4 each R-57 Ring Gaskets for the two 12" Diverter Valves
Sales items: Studs/Ring Gaskets provided at Cost + 15%

Diverter Package - 30" 1000 psi Systems

Consisting of:
1 x 30" 1000 psi Annular BOP, 30" 1M R-95 Flange down, 30" 1M R-95 Studded Top
1 x 30" 1000 psi Diverter Spool, 30" 1M Flanged Top & Bottom, c/w 2 off 13-5/8 3M R-57 Flanged Side Outlets
1 x 30" 1000 psi R-95 Butt Weld Flange for Conductor top
2 x 12" CI 900 Diverter Ball Valves, Hyd Actuated, 13-5/8" 3M Flanged R-57
2 x 13-5/8" 3000 psi R-57 Butt Weld Flanges for Diverter Valve to flare lines connection
Flare Lines, 12" by 15' sections c/w Flange or Hammer Lug connections to customer specifications.
28 Studs c/w 1 Nut 2" 8UN x 11-1/2" Long, Top of Annular
56 Studs c/w 2 Nuts 2" 8UN x 14-1/2" Long for the 30" 1000 psi R-95 Flanges & 30" 1M Butt Weld Flange
80 Studs c/w 2 Nuts 1-3/8" 8UN x 10-3/4" Long for the two 12" Diverter Valves & Butt Weld Flanges
3 each R-95 Ring Gaskets (for 30" 1M Profile)
4 each R-57 Ring Gaskets for the two 12" Diverter Valves
Sales items: Studs/Ring Gaskets provided at Cost + 15%

Diverter Package - 21-1/4" 2000 psi Systems

Consisting of:
1 x 21-1/4" 2000 psi Annular BOP, 21-1/4" 2M R-73 Flange down, 21-1/4" 2M R-73 Studded Top
1 x 21-1/4" 2000 psi Diverter Spool, 21-1/4" 2M R-73 Flanged Top & Bottom, c/w 2 off 13-5/8 3M R-57 Flanged Side Outlets
1 x 21-1/4" 2000 psi R-73 Butt Weld Flange for Casing Connection
2 x 12" CI 900 Diverter Ball Valves, Hyd Actuated, Flanged 13-5/8" 3M R-57
2 x 13-5/8" 3000 psi R-57 Butt Weld Flanges for Diverter Valves / Flare Lines
Flare Lines, 12" by 15' sections c/w Flange or Hammer Lug connections to customer specifications.
24 Studs c/w 1 Nut 1-5/8" 8UN x 8-3/8" Long, Top of Annular
48 Studs c/w 2 Nuts 1-5/8" 8UN x 12-1/2" Long for the 21-1/4" 2000 psi R-73 Flanges & 21-1/4" 2M R-73 Butt Weld Flange
80 Studs c/w 2 Nuts 1-3/8" 8UN x 10-3/4" Long for the two 12" Diverter Valves & Butt Weld Flanges
3 each R-73 Ring Gaskets (for 21-1/4" 2M Profile)
4 each R-57 Ring Gaskets for the two 12" Diverter Valves
Sales items: Studs/Ring Gaskets provided at Cost + 15%

Diverter Package - 13-5/8" 5000 psi Systems

Consisting of:
1 x 13-5/8" 5000 psi Annular BOP, 13-5/8" 5000 psi WP BX-160 Flange down,13-5/8" 5000 psi BX-160 Studded Top
1 x 13-5/8" 5000 psi Diverter Spool, 13-5/8" 5000 psi BX-160 Top & Bottom, c/w 2 off 8" ANSI CI 1500 Flanged Side Outlets
2 x 8" CI 1500 Diverter Ball Valves 5000 psi, Hyd Actuated, Flanged 8" ANSI CI 1500
2 x 8" ANSI CI 1500 Butt Weld Flanges for Diverter Valves / Flare Lines
Flare Lines, 12" by 15' sections c/w Flange or Hammer Lug connections to customer specifications.
16 Studs c/w 1 Nut 1-3/4" 8UN x 8-3/4" Long, Top of Annular
32 Studs c/w 2 Nuts 1-3/4" 8UN x 12-3/4" Long for the 13-5/8" 5M BX-160 Flanges
48 Studs c/w 2 Nuts 1-5/8" 8UN x 12-1/2" Long for the two 8" Diverter Valves and Butt Weld Flanges
3 each BX-160 Ring Gaskets (for 13-5/8" 5M Profile)
4 each R-50 Ring Gaskets for the two 8" CI 1500 Ball Valves
Sales items: Studs/Ring Gaskets provided at Cost + 15%
